Crown models will ship from Canada via US Postal System
* Do NOT cycle softened (salt) water through your Berkey System *

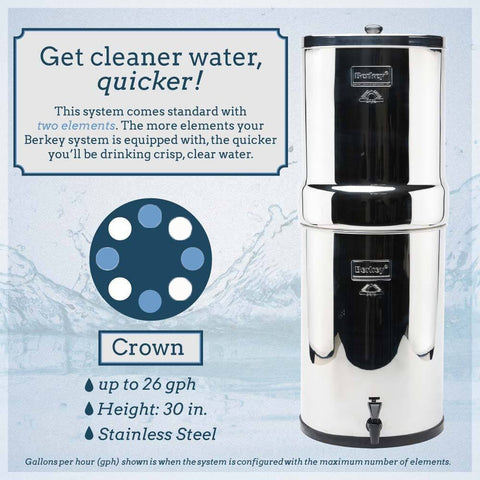

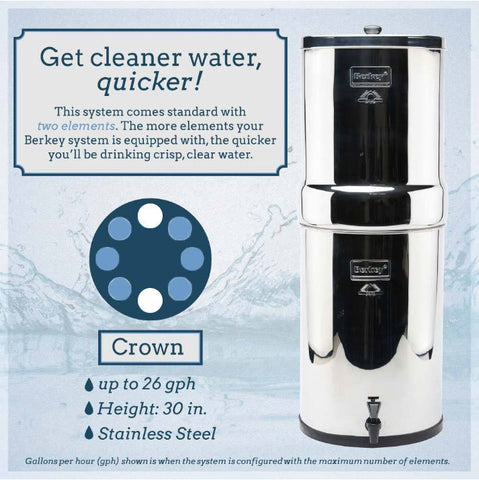

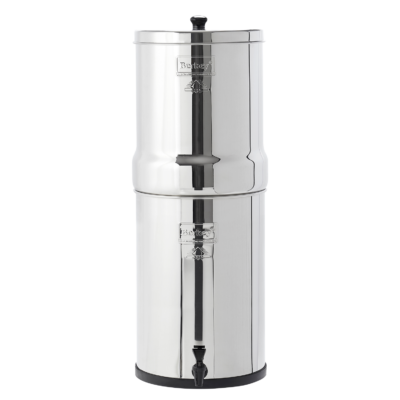

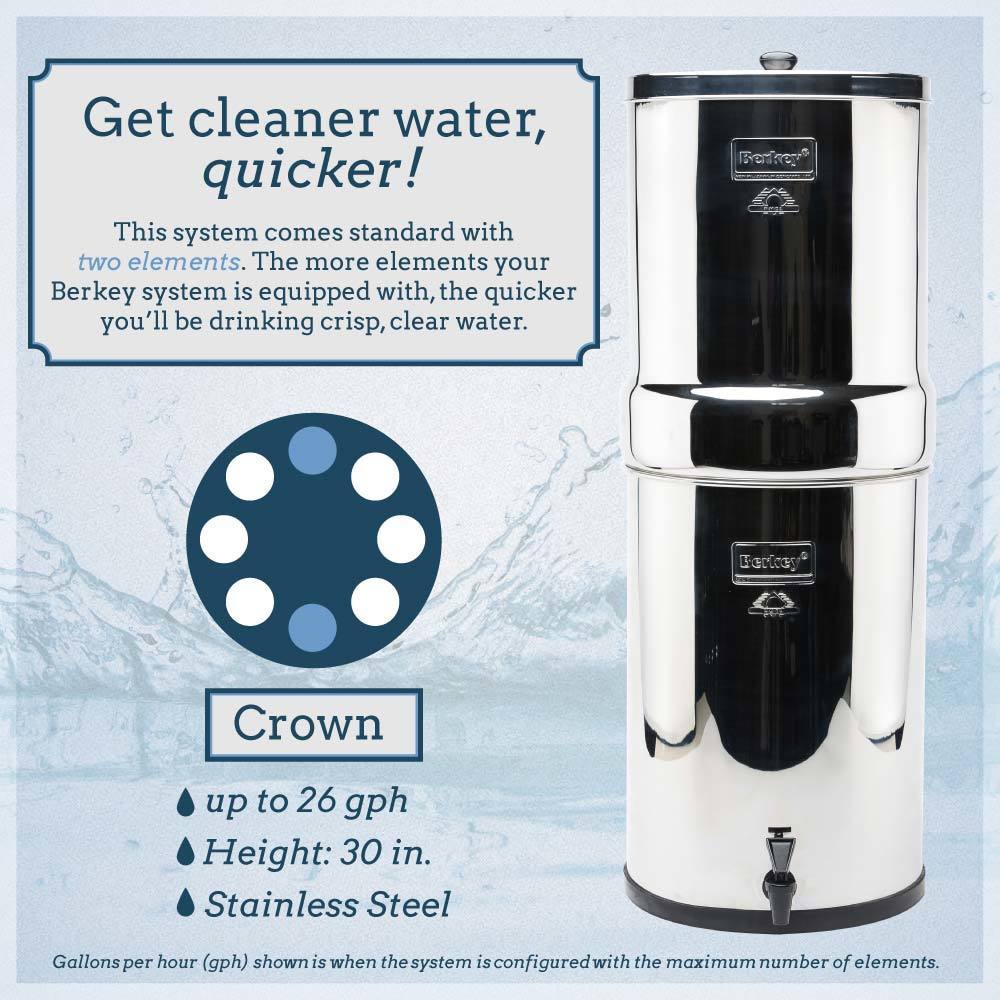

- The Crown Berkey™ System comes standard with two Black Berkey® Purification Elements but can be expanded up to 4, 6, or 8 elements
- The Crown Berkey™ System is our largest system and is ideal for large groups at home, churches, hospitals, outdoor activities, and during unexpected emergencies
- Constructed of highly polished AISI 304 stainless steel
- Storage capacity of about 6 gallons (22.7 liters)
- Upper chamber nests within lower chamber for transport and stands only 20" in height

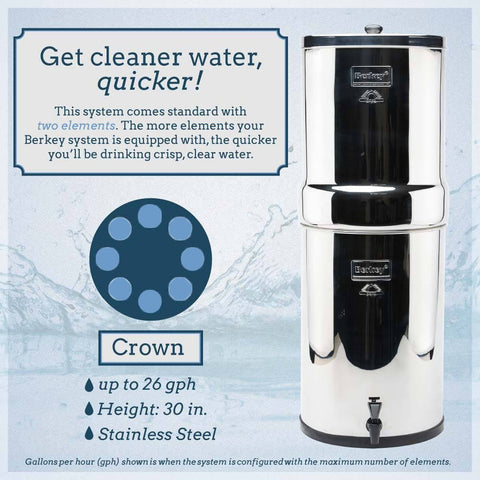

- Maximum Filters: 8 Black Berkey® Purification Elements (in upper chamber)

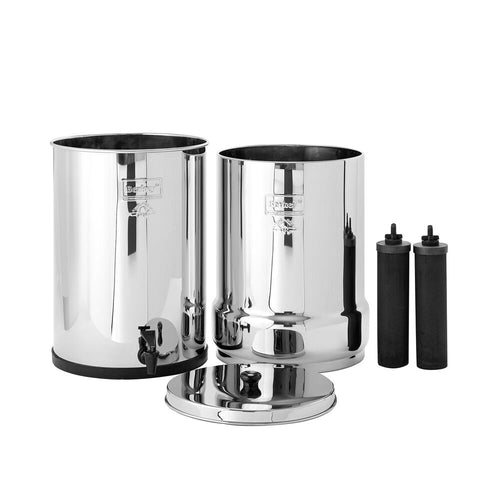

- System includes upper and lower stainless steel chamber, 2 Black Berkey® Purification Elements (expandable to 4, 6, or 8), 1 stainless steel lid, 1 spigot, 2 wingnuts, 2 washers, 1 priming button, 6 blocking plugs, 1 rubber gasket to protect the base

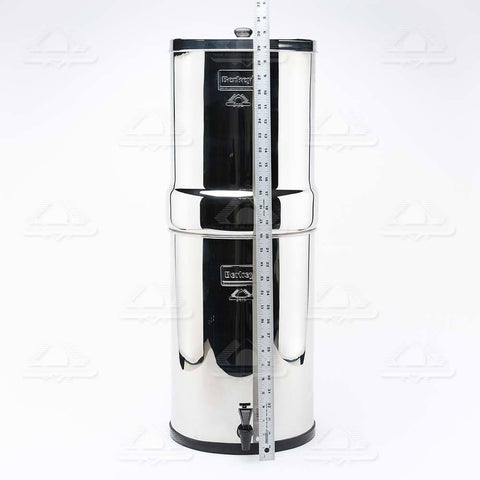

- Height when in use: 30"
- Diameter: 11"
- Weight: 12 lbs empty
- For normal everyday use, this system easily serves: 6-12 people
- Fully configured, this system can serve up to 100 people a day, during an emergency
- Maximum Filtration Flow Rate:
- Configured with 2 Black Berkey® Purification Elements, the Crown Berkey® System can purify up to 6.5 gallons (24.6 liters) of purified water per hour
- Configured with 8 Black Berkey® Purification Elements, the Crown Berkey® System can purify up to 26 gallons (98.4 liters) of purified water per hour
- Up to 8 PF-2™ Fluoride and Arsenic Reduction Elements can be installed in the lower chamber if desired
Flow rate calculated with upper chamber full to top. Flow rate decreases as water level declines.
Should have accessories;
- Black Berkey Primer / Purger Needed for regular maintenance of your Black Berkey elements
- Spare Element Wingnuts- Over-tightening will cause threads to strip, always have a spare on hand!
- Keep a spare Blocking Plug on hand. (in the unlikely event you have a malfunctioning elem
The following actions will void your warranty coverage:
1. Attempting to use the Berkey Earth® DE Filter Elements or the Ceramic Super Sterasyl™ Filtration Elements in a pressurized manner. The Black Berkey® Purification Elements are the only Berkey® elements that require priming.
2. Allowing any of the Berkey® elements to freeze.
3. Using dehumidifier water with any of the Black Berkey® Purification Elements for daily use.
4. Breaking the Berkey® elements due to dropping an assembled system or carelessness.
5. Failure to remove the Black Berkey® Elements from the system prior to transporting or moving the system, resulting in broken stems.
6. Performing a red food coloring test with the Berkey PF-2™ Fluoride and Arsenic Reduction Filters attached. The Berkey PF-2™ Fluoride and Arsenic Reduction Filters must be removed prior to performing a red food coloring test in order to stay in compliance with the six month warranty on these filters.
7. Using the water from a water softening system. Note: this action may clog the Berkey® Purification Elements or cause the stainless steel to pit or rust.
8. If the product is not used in accordance with manufacturer's recommendations or instructions.
